20-3104

€819,00
/
Tax included. Shipping calculated at checkout.
Color
Size
  • Free shipping
  • In stock, ready to ship
  • Inventory on the way

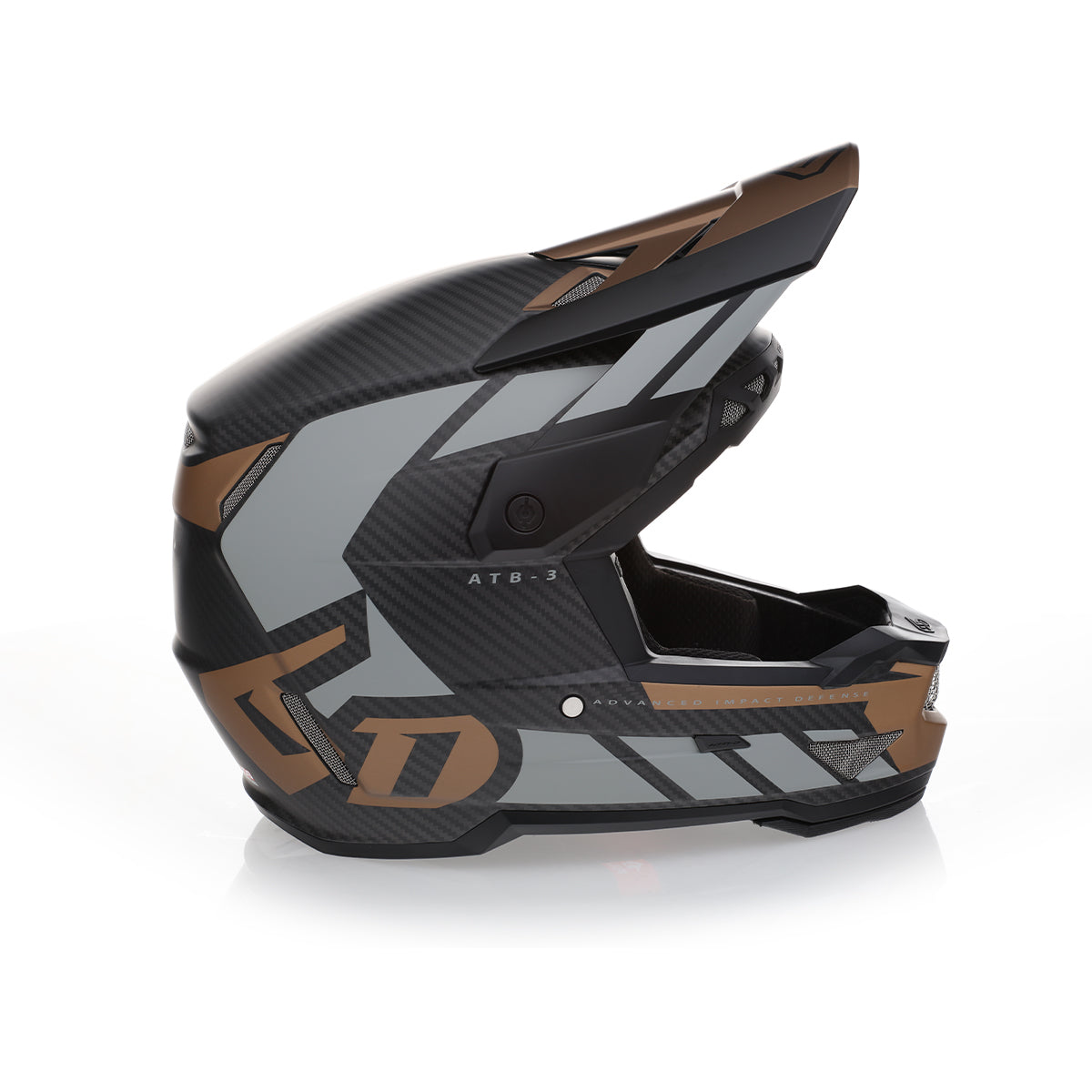

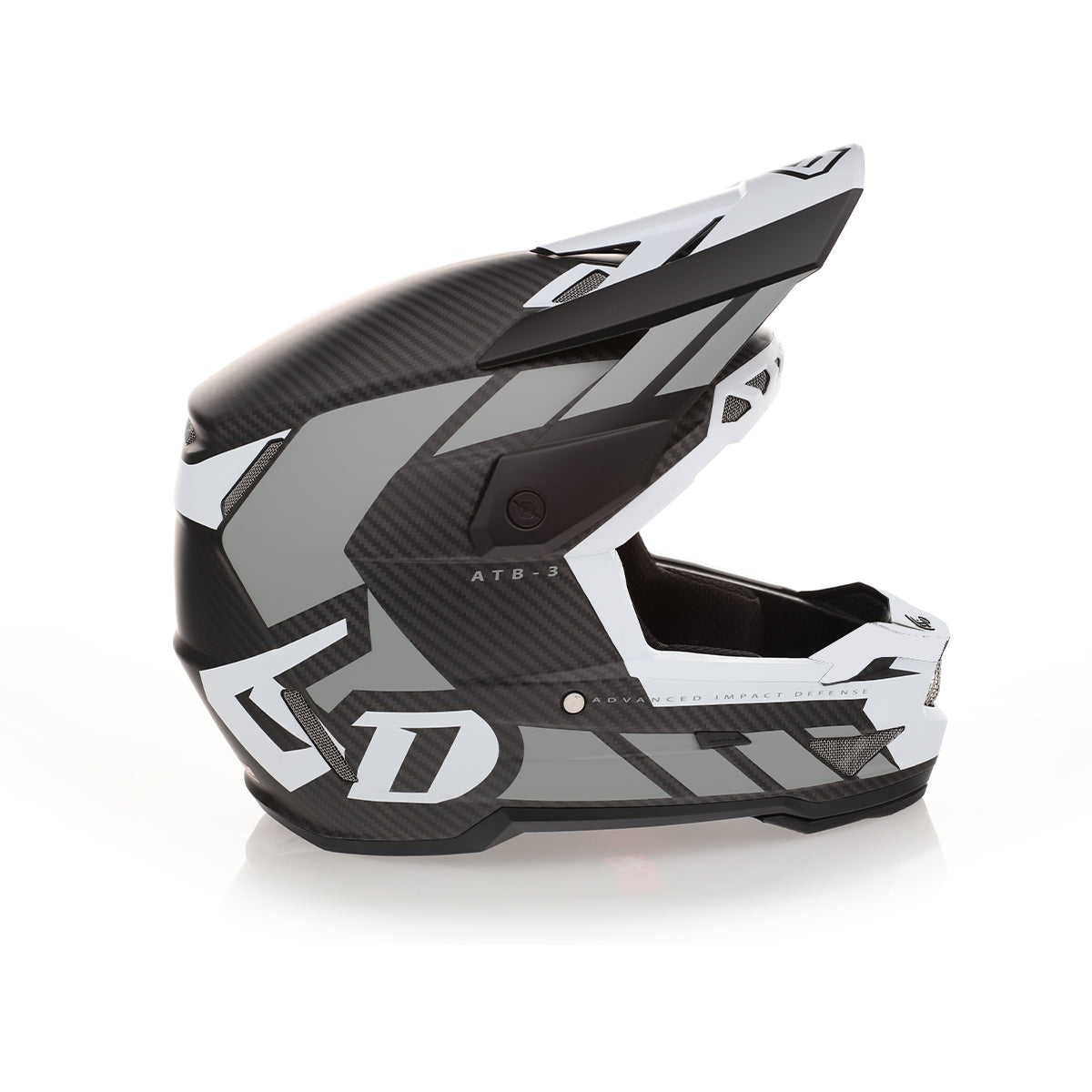

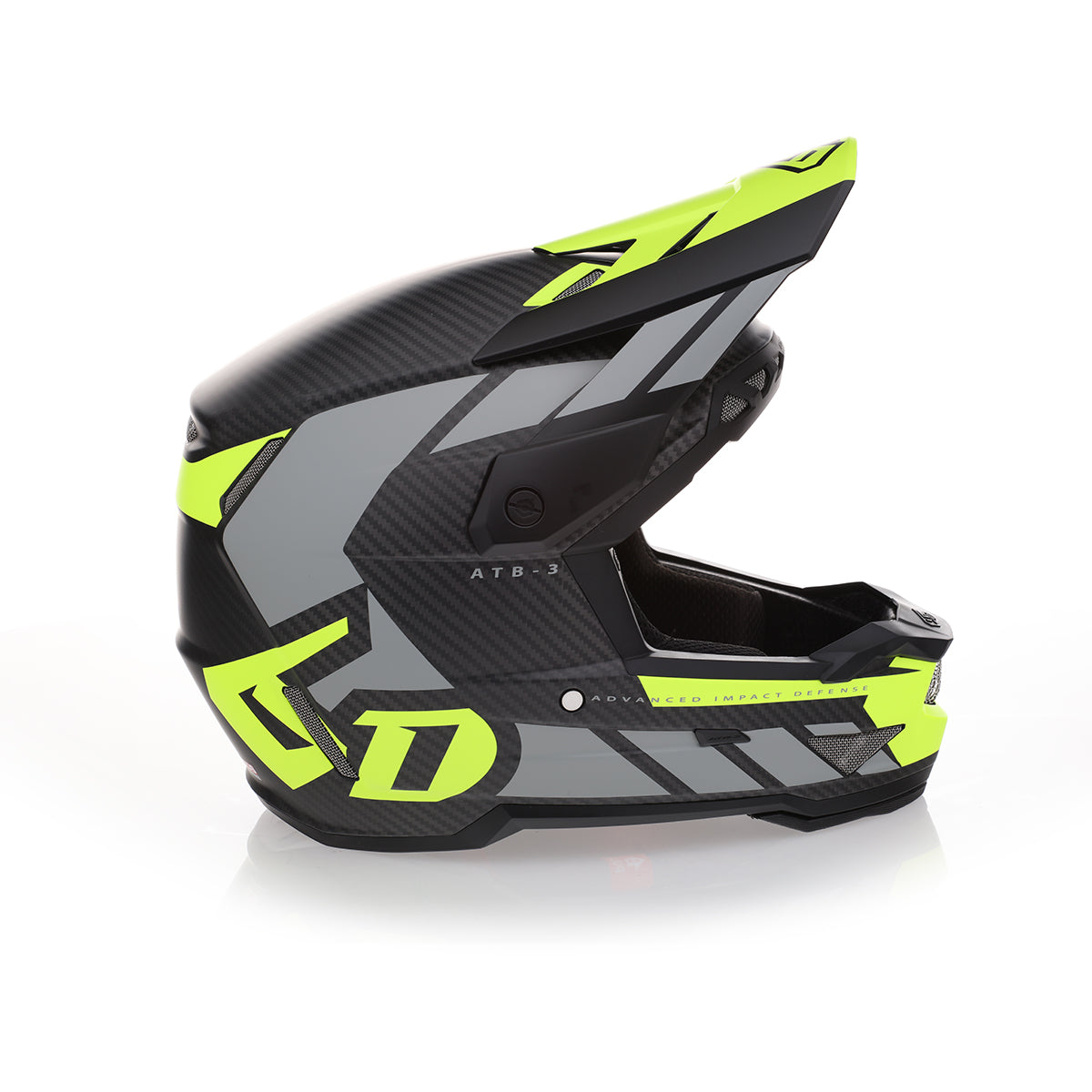

Introducing the 6D ATB-3, the next evolution in bicycle helmet technology, purpose-built for riders who demand uncompromised protection, ventilation, and style. Derived from the groundbreaking ATR-3 motocross platform, the ATB-3 carries forward the power of 6D’s fifth-generation Omni-Directional Suspension™ (ODS) system in a design refined specifically for cycling.

With a sleek, lightweight 3K carbon shell, expanded ventilation channels, and an all-new aerodynamic profile, the ATB-3 delivers the perfect balance of stealth and performance. More than just a motocross adaptation, the ATB-3 is a true redefinition of bicycle protection.  Experience the next level of confidence and control with the all-new 6D ATB-3.

• Rebuildable 5th Generation Omni-Directional Suspension™ (ODS)
• 3K Carbon Composite Shell
• Optimized Bicycle-Specific Adjustable Visor – Designed for enhanced field of vision (FOV) and superior adjustability across varying riding conditions.
• Refined Chinbar Design – Strategically shaped to maximize FOV while maintaining structural integrity and protection.
• Air-Gap™ ventilation system with Ram Air Direct-to-Brow Cooling
• Removable, washable, antibacterial comfort liner
• Emergency release cheek pads – removable, washable, antibacterial fabric
• Recessed shear-away visor screws
• Speaker pockets allow for in-helmet communication and audio systems.
• Cervical spine relief – rear lower shell incorporates compliant zone at the cervical spine location.
• Clavicle cut-away – provides increased clavicle clearance.
• Sternum pad – provides added protection to the chin, jaw, and sternum.
• Magnetic chinstrap clasp
• Drink Tube compatible
• 6D Proprietary Custom Titanium D-rings
• +/- 1300 grams size M/L
• Exceeds CPSC, EN 1078, AS/NZS 2063, ASTM 1952-15, ASTM 2032-15
• 3-year limited warranty

WORLD CUP PROVEN

WATCH NOW

KEY FEATURES

Two line
title slide.

And optional subtext
Optional button
LUX TURNER | AEO KTM
ATR-3 // NOVA
ATR-3 // wAVE cYAN

Fifth Generation ODS™

Introducing Generation Five of 6D's Omni-Directional Suspension™ Technology. Our most advanced system to date, designed for today’s extreme racing conditions. The enhanced system is more efficient, lighter, and freer to do its job, effectively mitigating energy transfer from crash impacts.

learn more

RIDER-FOCUSED FIT & EXPANDED FIELD OF VIEW

The ATB-3’s streamlined shell is engineered specifically for cyclists, delivering a lighter, more compact fit without sacrificing strength. A bicycle-specific adjustable visor expands field of view with increased height adjustment, while the refined chin bar enhances visibility without compromising protection.

REBUILDABLE

Like its predecessor, the ATR-3 takes head protection to the next level with its groundbreaking concept of rebuildability. Unlike traditional helmets, which are typically discarded after a significant impact, the ATR-3 is designed to be rebuilt and reused, continuing the legacy of innovation started by the ATR-2.

RAM AIR DIRECT-TO-BROW COOLING

A new feature that enhances airflow and comfort. With newly designed direct channels and improved flow, this system efficiently directs cool air to the brow area and throughout the helmet, ensuring optimal ventilation and temperature regulation during use.

LABORATORY TESTED

ANGULAR ACCELERATION

A root cause to brain injury and concussion. Angular acceleration is generated from angled impacts to the helmet’s surface resulting in shearing, tearing and bruising of the soft tissues within the brain.

Broad Range Protection

Most helmet strikes in real-world scenarios are low-threshold energy impacts, which fall below certification pass/fail thresholds but can still cause concussion or more severe injuries. High velocity impacts, with the greatest potential for severe injury, require helmets to work at maximum capacity to ensure the highest level of protection. Therefore, it's crucial to have a helmet that provides comprehensive protection across all impact velocities.

ODS™ FIVE TECHNICAL FEATURES

MULTI-IMPACT OUTER EPP LINER

The multi-impact EPP outer liner is strategically positioned against the helmet shell's inner surface. It is an exceptional energy absorption material designed with "Damping Towers" to provide a progressive spring rate to the suspended inner EPS liner during impacts. This capability, along with the EPP's multi-impact feature, is key in allowing the ATR-3 to be rebuilt.

REPLACEABLE INNER EPS LINER

The inner EPS liner is a crucial component of the ODS™ design, acting as the primary layer of defense. It functions as a helmet within a helmet. This inner liner nestles into the ODS™ carrier, offering strength and integrity to the EPS while reducing angular acceleration forces with its slippery surface.

Air-Gap™ ventilation system with Ram Air Direct-to-Brow Cooling

A new feature that enhances airflow and comfort. With newly designed direct channels and improved flow, this system efficiently directs cool air to the brow area and throughout the helmet, ensuring optimal ventilation and temperature regulation during use.

3K Carbon Composite Shell

The new shell material enables a 3K Carbon Fiber outer layer while maintaining 6D's renowned durability. The 6D 'Optimized Shell Design' concept uses multiple materials to enhance protection and energy management. The shell must prevent penetration without being overly stiff, as excessive stiffness impairs energy management.

ODS 5 Isolation Dampers

Isolation Dampers connect the ODS™ carrier to the outer EPP liner, isolating impact forces from the brain. This new design features longer and more elastic dampers that require no gluing. Their unique shape provides progressive resistance to assist in managing the onset of angular acceleration, then subsequently returning the liner to its neutral position.

EPP CHINBAR

The EPP lined chinbar is thicker and has a lower density, offering increased durability and enhanced energy absorption for side impacts to the jaw area. It is equipped with a polyurethane over-molded sternum pad.

Additional Safety features

The new ATR-3 helmet incorporates several additional safety features. The chinbar has a clavicle cutout for more collarbone clearance, while the Cervical Protection Zone at the lower rear base provides extra crushable protection for the neck and spine in the event of downward and backward impacts. Additionally, shear-away visor screws enable the visor to break away during severe crashes.

ODS™ CARRIER

The new ODS™ carrier is lighter and simplified. It enables a modular helmet design that is easily rebuildable. It supports the isolation dampers, manages materials during impact, and recenters post-impact.
