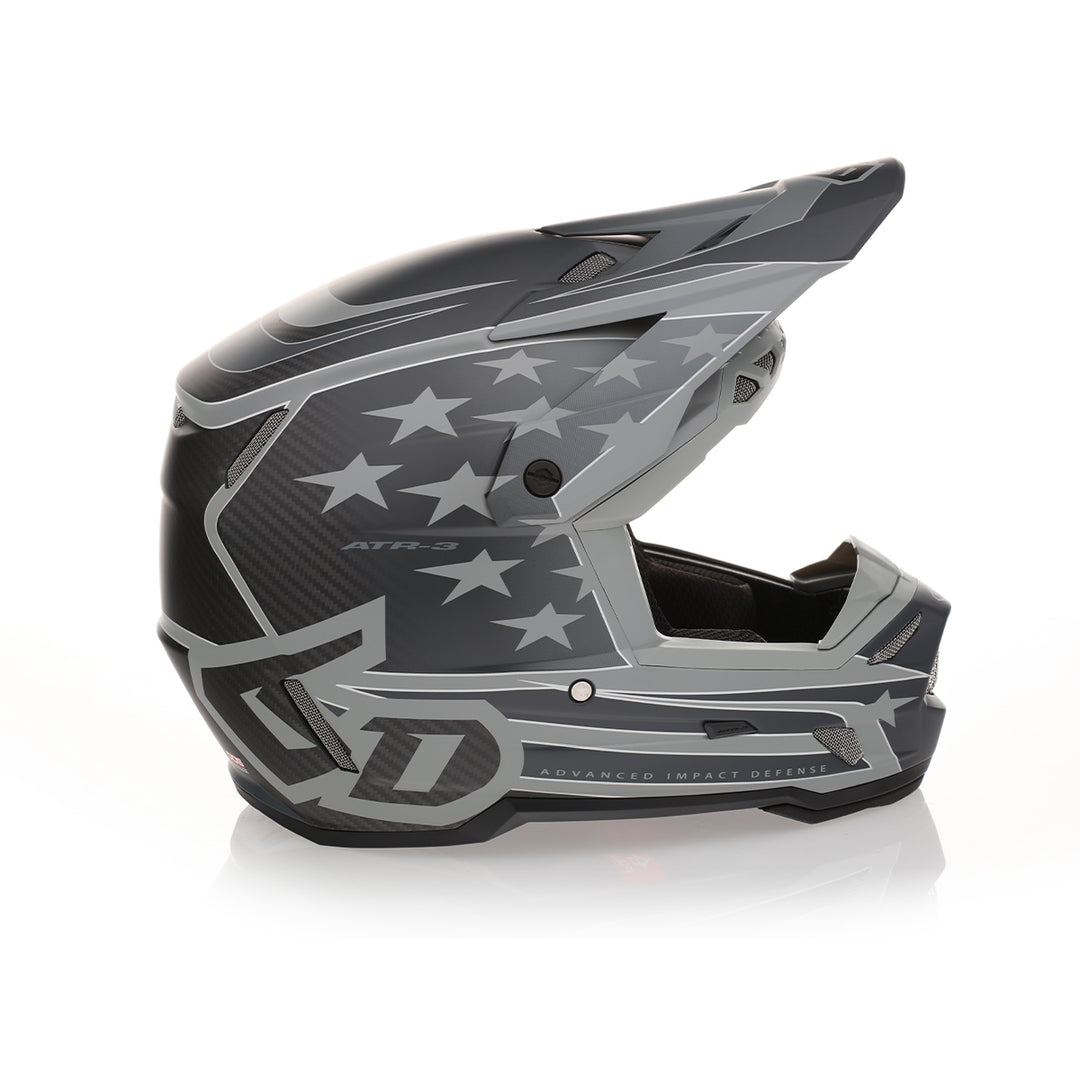

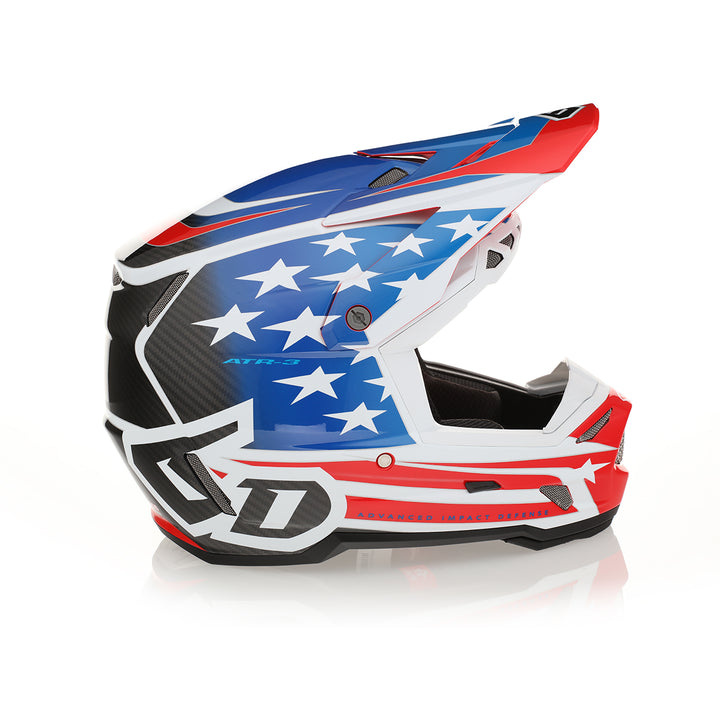

ATR-3 Patriot
ATR-3 Patriot
ATR-3 Patriot
ATR-3 Patriot

ATR-3 Patriot

€889,95
/
Tax included. Shipping calculated at checkout.
Color
Size
  • Free shipping
  • In stock, ready to ship
  • Inventory on the way

Experience the Gold Standard of motorcycle helmet technology with the 6D ATR-3. Building on the success of its predecessor, the ATR-3 offers unmatched innovation and performance. Featuring its cutting-edge fifth-generation Omni-Directional Suspension™ (ODS) system and a unique rebuildable design, this helmet sets a new standard in head protection. The ATR-3 was engineered to provide superior energy management capabilities, effectively mitigating impacts in a broader range of demanding conditions. Elevate your riding experience with the unparalleled protection and advanced design of the 6D ATR-3.

  • Rebuildable Omni-Directional Suspension (ODS)
  • 3K Carbon Composite Shell
  • Air-Gap™ ventilation system with Ram Air
    Direct-to-Brow Cooling
  • Removable, washable, antibacterial comfort liner
  • Emergency release cheek pads – removable, washable,
    antibacterial fabric
  • Recessed shear-away visor screws
  • Removable Roost guard – provides additional face
    protection.
  • Speaker pockets allow for in-helmet
    communication systems.
  • Cervical spine relief – rear lower shell
    incorporates compliant zone at the cervical spine location.
  • Clavicle cut-away – provides increased clavicle
    clearance.
  • Sternum pad – provides added protection to the
    chin, jaw, and sternum.
  • Lightweight with improved center of Gravity
  • Magnetic chinstrap clasp
  • Eject system compatible
  • Drink Tube compatible
  • 6D Proprietary Custom Titanium D-rings
  • +/- 1350 grams size M/L
  • Mud Visor Extension included
  • Deluxe helmet bag included
  • Exceeds DOT, ECE 22-06, FIM 02, and ACU
    certification standards
  • 3-year limited warranty

UNMATCHED PERFROMNCE

Discover the ATR-3
WATCH NOW

KEY FEATURES

Two line
title slide.

And optional subtext
Optional button
LUX TURNER | AEO KTM
ATR-3 // NOVA
ATR-3 // wAVE cYAN

Fifth Generation ODS™

Introducing Generation Five of 6D's Omni-Directional Suspension™ Technology. Our most advanced system to date, designed for today’s extreme racing conditions. The enhanced system is more efficient, lighter, and freer to do its job, effectively mitigating energy transfer from crash impacts.

learn more

REBUILDABLE

Like its predecessor, the ATR-3 takes head protection to the next level with its groundbreaking concept of rebuildability. Unlike traditional helmets, which are typically discarded after a significant impact, the ATR-3 is designed to be rebuilt and reused, continuing the legacy of innovation started by the ATR-2.

RAM AIR DIRECT-TO-BROW COOLING

A new feature that enhances airflow and comfort. With newly designed direct channels and improved flow, this system efficiently directs cool air to the brow area and throughout the helmet, ensuring optimal ventilation and temperature regulation during use.

LABORATORY TESTED

ANGULAR ACCELERATION

A root cause to brain injury and concussion. Angular acceleration is generated from angled impacts to the helmet’s surface resulting in shearing, tearing and bruising of the soft tissues within the brain.

Broad Range Protection

Most helmet strikes in real-world scenarios are low-threshold energy impacts, which fall below certification pass/fail thresholds but can still cause concussion or more severe injuries. High velocity impacts, with the greatest potential for severe injury, require helmets to work at maximum capacity to ensure the highest level of protection. Therefore, it's crucial to have a helmet that provides comprehensive protection across all impact velocities.

ODS™ FIVE TECHNICAL FEATURES

MULTI-IMPACT OUTER EPP LINER

The multi-impact EPP outer liner is strategically positioned against the helmet shell's inner surface. It is an exceptional energy absorption material designed with "Damping Towers" to provide a progressive spring rate to the suspended inner EPS liner during impacts. This capability, along with the EPP's multi-impact feature, is key in allowing the ATR-3 to be rebuilt.

REPLACEABLE INNER EPS LINER

The inner EPS liner is a crucial component of the ODS™ design, acting as the primary layer of defense. It functions as a helmet within a helmet. This inner liner nestles into the ODS™ carrier, offering strength and integrity to the EPS while reducing angular acceleration forces with its slippery surface.

Air-Gap™ ventilation system with Ram Air Direct-to-Brow Cooling

A new feature that enhances airflow and comfort. With newly designed direct channels and improved flow, this system efficiently directs cool air to the brow area and throughout the helmet, ensuring optimal ventilation and temperature regulation during use.

3K Carbon Composite Shell

The new shell material enables a 3K Carbon Fiber outer layer while maintaining 6D's renowned durability. The 6D 'Optimized Shell Design' concept uses multiple materials to enhance protection and energy management. The shell must prevent penetration without being overly stiff, as excessive stiffness impairs energy management.

ODS 5 Isolation Dampers

Isolation Dampers connect the ODS™ carrier to the outer EPP liner, isolating impact forces from the brain. This new design features longer and more elastic dampers that require no gluing. Their unique shape provides progressive resistance to assist in managing the onset of angular acceleration, then subsequently returning the liner to its neutral position.

EPP CHINBAR

The EPP lined chinbar is thicker and has a lower density, offering increased durability and enhanced energy absorption for side impacts to the jaw area. It is equipped with a polyurethane over-molded sternum pad.

Additional Safety features

The new ATR-3 helmet incorporates several additional safety features. The chinbar has a clavicle cutout for more collarbone clearance, while the Cervical Protection Zone at the lower rear base provides extra crushable protection for the neck and spine in the event of downward and backward impacts. Additionally, shear-away visor screws enable the visor to break away during severe crashes.

ODS™ CARRIER

The new ODS™ carrier is lighter and simplified. It enables a modular helmet design that is easily rebuildable. It supports the isolation dampers, manages materials during impact, and recenters post-impact.

Helmet Comparison: Discover the Difference in Performance
